Thiết bị đo nhiệt độ từ xa Kyoritsu-5515

    Thiết bị đo nhiệt độ từ xa
    Model: 5515
    Hãng sản xuất: Kyoritsu – Nhật
    Xuất xứ: TAIWAN
    Bảo hành : 12 tháng

    Liên hệ: 0932 039 968 – Mr Phương

    Danh mục: Từ khóa:

      DANGER
      The connector for thermocouple is not insulated. Do not make measurement using a thermocouple when there is a risk of electrical shock hazard.

      WARNING

      • Do not look directly into the laser.
      • Do not point the laser directly at persons or animals.
      • When measuring a reflective object such as mirrors, take extra caution so as not to look diffuse reflections.
      • Keep out of reach of child or person who doesn’t have the Product handling knowledge.
      • Use the Product only as specified. Do not disassemble or modify the Product.



      Display features

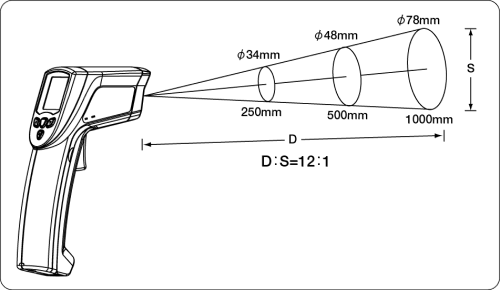

      Relation of distance and measuring diameter

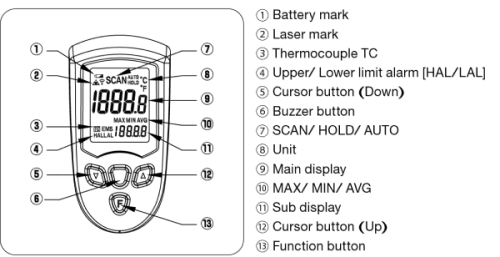

      Display / Buttons

      Specification

      Infrared Thermometer
      Measuring range -32 – 535ºC
      Accuracy ±3.0ºC (-32 – -20 ºC), ±2.0ºC (-20 – +100ºC), ±2%rdg (100 – 535ºC)
      Measuring element Thermopile
      Infrared spectral band 5 – 14μm
      Measuring diameter 1000mm/ ø78mm (Distance/ Measuring dia.: 12:1)
      Repeatability Within ±1ºC
      Emissivity Variable between 0.10 and 1.00 (by 0.01 steps), Before shipment: 0.95
      Collimation Laser beam (Class 2, 630 – 670nm, 1mW or less) specifies the center.
      Thermocouple
      Thermocouple K-type*
      Measuring range of
      thermocouple      		 -199 – 1372ºC
      Accuracy of
      thermocouple      		 ±1.5%rdg+1ºC (-40 – 1372ºC)
      Response 500ms
      Resolution 0.1ºC
      Auto power off If no key is pressed for 6 seconds, the power is shut off automatically.
      LCD display LCD with backlight (blinks in red when alarm function is activated)
      Dual display Simultaneous display
      (Measured value and either of max, min, average or thermocouple value.)
      Operating temperature & humidity 0 – 50ºC/ 10 – 90% RH
      Applicable standards IEC 61326, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8, IEC60825-1
      Battery 6F22(9V) × 1
      Dimension 180 (L)×130 (W)×40 (D) mm
      Weight Approx. 195g (excluding battery)
      Accessories 9152(Carrying case)
      6F22(9V) × 1
      Instruction manual

      * Commercial K-type thermocouple can be used with the product.
